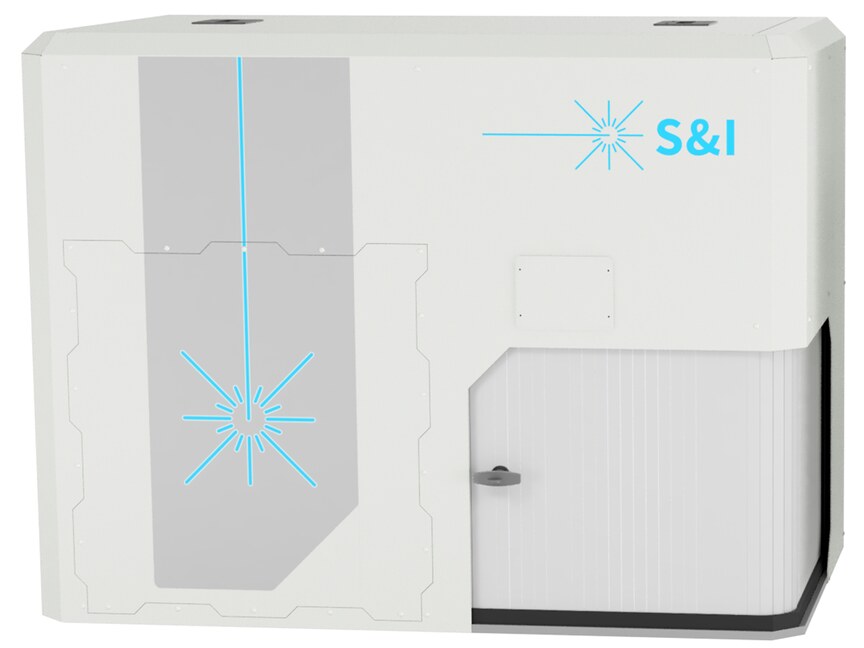

MonoVista CRS³

(housed, laser class 1, motorized)

The perfect entry into high end Raman and photoluminescence spectroscopy for any type of user.

The MonoVista CRS³ provides a high-end confocal Raman and photoluminescence system of highest performance in terms of throughput and spectral resolution, while maintaining a maximum of convenience to the user.

It also provides optical coupling capability to microscopes, macro chambers, as well as other third-party equipment, like AFM, SEM, Cryostats and other customer desired solutions, provided there is a suitable port for optical coupling via free beam or optical fiber.

Features

  • Astigmatism corrected deep UV to NIR wavelength range (200 to 2200 nm), with a maximum working range of 120 nm – 20 µm, with special coatings
  • Up to 8 laser systems (internal or external lasers)
  • Dual laser beam path for UV and VIS/NIR
  • Fully automated software-control, including
    • Measurement-setup control
    • Full auto-alignment and calibration control
  • High spectral resolution, i. e. down to < 0.25 cm-1 FWHM at 633 nm
  • Low frequency range down to +/- 10 cm-1 with Ultra Narrow band notch filters
  • High frequency range up to 1080 nm on CCDs and 2200 nm+ with suitable InGaAs or other IR-range detectors, perfect for UV-IR Raman and Photoluminescence
  • High spatial resolution down to < 350 nm XY and 1 µm Z
  • Adaptable for external measurements via external coupling options (free beam of fiber)
  • Optional enhancements:
    • Macro Raman
    • Polarization Raman Measurements
    • Temperature dependent Raman Measurements
      via Heating/Cooling-Stages (up to 1500 °C), Cryostats (down to 1.5 K) or Laser-Heating
    • Motorized (3D-XYZ) Point-by-Point and Fast Raman Mapping
      also with piezo-driven XYZ-Stages
    • TERS, STM and AFM-Raman Mapping with A.P.E. Research AFM systems
    • Time-Correlated-Single-Photo-Counting (TCSPC)
    • Laser Safety Class I

Components

Spectrograph

  • Spectrographs with 300, 500 and 750 mm focal length
  • Image corrected optics provide superior imaging quality for multi-track applications
  • Dual-entrance and dual-exit ports
  • Interchangeable grating turrets with 3 gratings per turret
  • Motorized slits with 10 µm to 3 mm or 12 mm width
  • Optional Silver or Gold coated mirrors
  • Choice of more than 100 gratings available for the best spectral range, throughput and dispersion
  • Stepping motor scanning system with encoded microprocessor control provides superior precision and repeatability of wavelength positioning
  • Optional internal shutter for experiments requiring background removal or signal attenuation

Microscope

  • Upright Olympus microscopes BX53 and BX51WI, inverted Olympus microscope IX73/83, dual or custom-built microscopes
  • Objectives for UV, VIS, NIR and IR with short and long working distance
  • Sample observation with binocular tubes and imaging camera
  • Simultanious sample and laser observation
  • DIC, Dark- and Bright-Field illumination
  • Equipped with optics sets that are matched for desired wavelength range
  • Manual and motorized XYZ-tables for sample movement

Detector

  • Peltier- and liquid-nitrogen-cooled detectors
  • CCD, InGaAs array and single-point detectors
  • EMCCDs for fastest Raman mapping
  • Back-illuminated eXcelon/anti-fringing CCD detectors with lowest etaloning
  • Photon Counting PMT systems

Laser & Filters

  • Wide selection of CW-Laser systems from DUV to NIR (194 - 1064 nm)
  • Laser clean-up filters and Raman-Edge/Notch filters from UV to NIR
  • Ultra-narrow-band notch filters for 405, 488, 514, 532, 633, 785 and 1064 nm
  • Laser intensity regulation via ND-filter-changer (up to ND8)
  • Shutters for sample, detector protection and laser safety class I

Accessories

  • Optic sets for automated polarization measurements (UV to IR)
  • Optic sets for Line-Focus measurements
  • Macro-Raman Chamber and Macro-Raman Accessory for microscopes
  • Motorized XYZ-stages with stepsize < 50 nm
  • Piezo XYZ-stages with stepsize < 10 nm
  • Heating/Cooling stages
    • Heating stage, temperature limit at 1500 °C
    • Combined Heating/Cooling stages, working range: -196°C - 600°C
    • Helium cryostats (with and without cryogen) with temperature limit at a few Kelvin
  • AFM from A.P.E. Instruments for TERS and AFM-Raman mapping
  • Coupling to beam-lines possible via free-beam or fiber-coupling



Macro Raman Chamber

  • Useful for solids, liquids and gases
  • f/2 entrance optics
  • Laser focussing lens
  • Holder for Interference filter (without filters)
  • Variable Incidence for Solids
  • Horizontal beam for Liquids and Gases
  • 180° Illumination
  • Multipass mirrors
  • Retro collecting mirror
  • X-Y-Z sample movement (optionally motorized)
