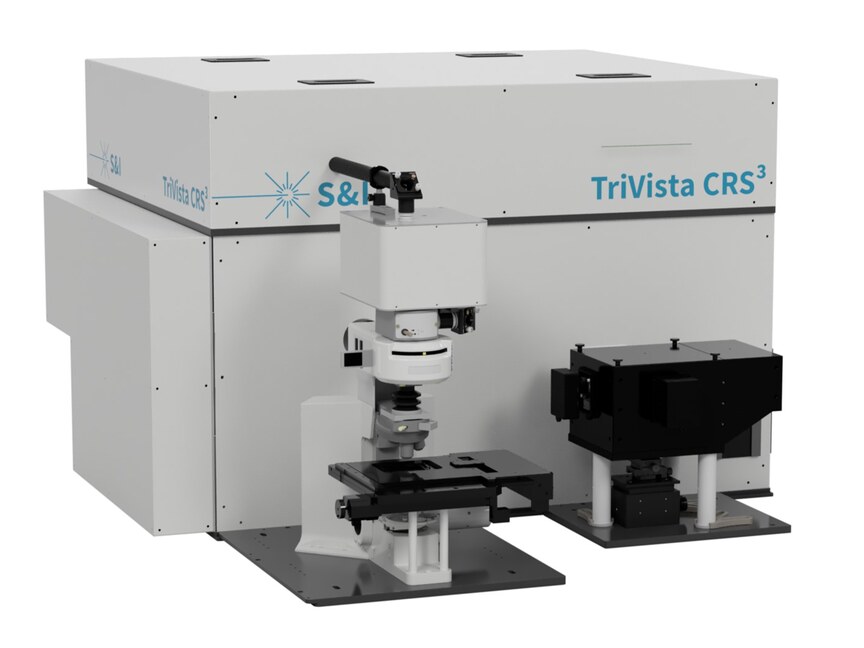

TriVista CRS³

The TriVista CRS³ is the pinnacle of ultra-high-end Raman and photoluminescence spectroscopy.
It combines the high-resolution bandpass capability of a DuoVista, with the unmatched spectral resolution, throughput, motorisation and imaging capabilities of S&Is MonoVista systems.
All TriVista systems are based on the successful Princeton Instruments SpectraPro HRS imaging monochromator series.

While the TriVista Basic is best suited for customers with previous knowledge in the field of spectroscopy, due to it providing a wide array of free degree usage, the CRS³ version combined with extensive motorisation and easy handling via our VistaControl software can help to significantly flatten the learning curve and make it almost as easy to handle as one of our MonoVista systems is.

TriVista Systems are best suited for ultra-high-end applications providing the best solution for

  • The necessity of ultra-high resolution in additive dispersion providing an unbeatable spectral resolution (i.e. FWHM < 0.002 nm / 0.08 cm-1 at 633 nm on a TR777)
  • Lowest frequency measurements down to ≤ 5 cm-1 in subtractive mode (≤ 1.5 cm-1 for single-point detectors)
  • Variable excitation-wavelengths experiments supported to observe the dependence of Raman spectra with respect to the excitation-wavelength
    S&I can provide and propose multiple different tuneable lasers, to unlock the TriVistas full potential
  • Maximum flexibility and optional enhancements, like a huge selection of different types of microscopes, lasers and accessories for various applications
    please also consider our MonoVista CRS³ and Custom microscopes

The standard (Basic) TriVista consists of a base plate, for a sturdy and movement-free connection between the three stages and is available in three different sizes:

TR555CRS – double stage 500 mm Czerny-Turner monochromator bandpass and 500 mm Czerny-Turner monochromator imaging stage

TR557CRS – double stage 500 mm Czerny-Turner monochromator bandpass and 750 mm Czerny-Turner monochromator imaging stage

TR777CRS – double stage 750 mm Czerny-Turner monochromator bandpass and 750 mm Czerny-Turner monochromator imaging stage

Features

Additive-Mode

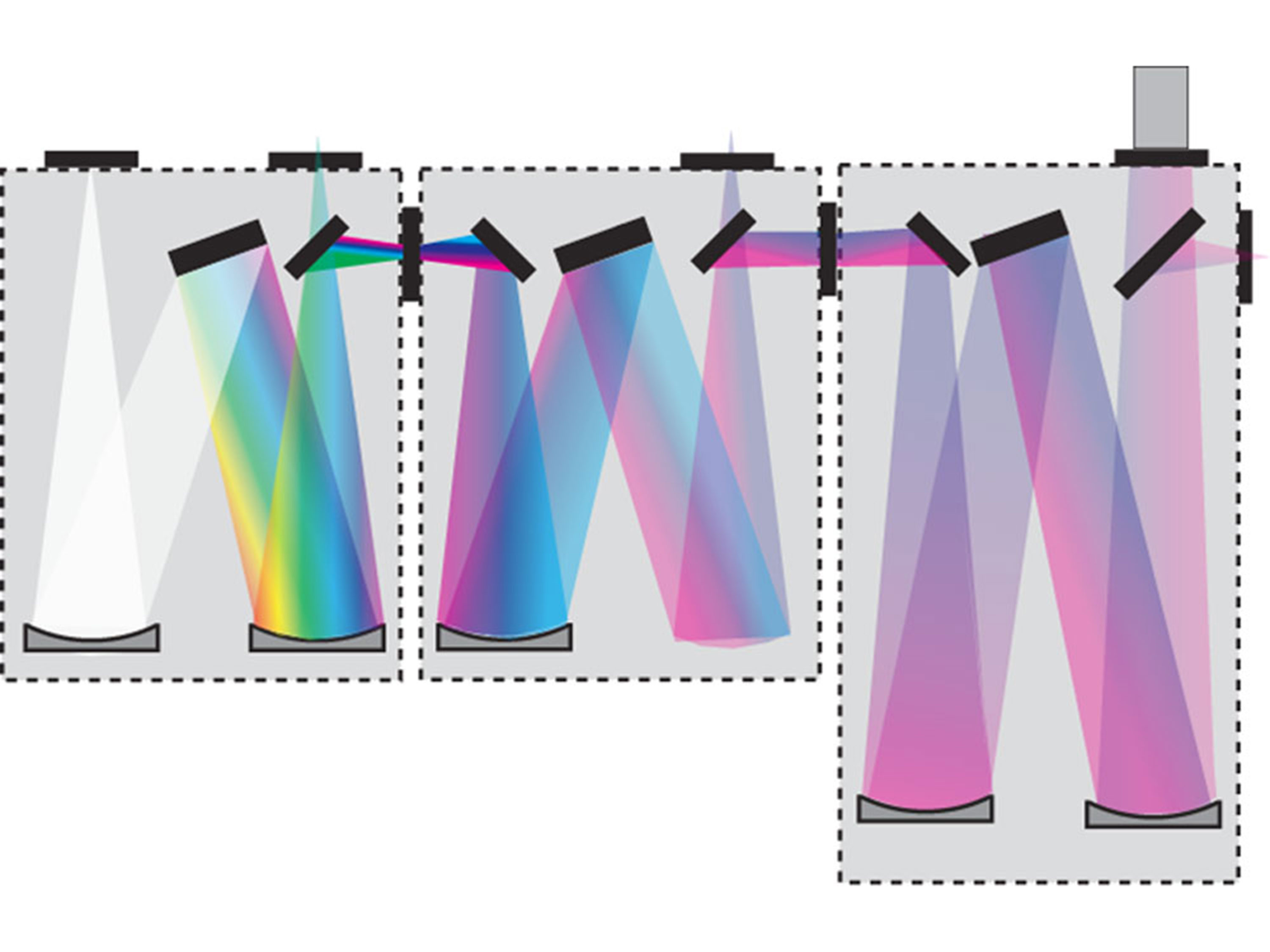

In additive dispersion-mode each stage of the spectrometer-system disperses the spectrum of the incoming light. So, each stage adds an additional dispersion. The first monochromator stage disperses the spectral radiation into separate wavelength components, allowing a specific spectral window to enter the next stage. The same way as the second stage, the third stage adds a third dispersion to the spectrum which is finally coupled to a detector in the last stage with even a lower level of stray light.
The possible resolution is as high as for a single spectrometer with a focal length which is equal to the sum of the focal length of the 3 stages.

Subtractive-Mode

In subtractive mode, the first and the second stages of spectrometer work as a tunable bandpass filter to allow only the desired portion of spectrum to pass through and reducing stray light levels.

A polychromatic light enters the first stage through the entrance slit and is dispersed by the first grating. The intermediate Slit acts as a bandpass filter passing only the light between wavelengths λ1 and λ2. The grating in the second Stage recombines all the dispersed light and focuses it into the entrance slit of the third stage, producing again a polychromatic light limited to the spectral range between wavelengths λ1 and λ2.

  • Deep UV to IR wavelength range
  • High spectral resolution, i.e. FWHM < 0.002 nm / 0.08 cm–1 at 633 nm (TR777i in additive mode)
  • Low frequency Raman measurements down to 5 cm-1 or less, depending on sample
    (≤ 1.5 cm-1 for single-point detectors)
  • Operable for unlimited amount of laser wavelength in the range from DUV to NIR
    useful for tunable laser-excitation
  • Easy automated switching via VistaControl Software between “Additive” and “Subtractive” dispersion-mode
  • Simultanious Stokes / Anti-Stokes Measurements
  • Easy switch between Triple- and Single-Stage Operations (with optional Bypass-enhancement)
  • Easy software-switch between “Additive” and “Subtractive” Dispersion-Mode
  • Adaptable to external experiments and defined experiment integration like i.e. XRD, and more
  • Optional enhancements:
    • Easy switch between Triple- and Single-Stage Operations (via optomechanical bypass)
    • Macro Raman
    • Polarization Raman Measurements
    • Temperature depending Raman Measurements
    • Motorized Point-To-Point and Fast Raman Mapping
    • TERS and AFM-Raman Mapping
    • Laser Safety Claas I

Components

Spectograph

  • Additive and Subtractive Dispersion
  • Image corrected optics provide superior imaging quality for multi-track applications
  • Multiple entrance and exit ports
  • Interchangeable Grating Turrets with 3 gratings per turret per stage
    (up to 27 gratings on 9 turrets possible)
  • Choice of more than 100 gratings available for the best spectral range, throughput and dispersion
  • Motorized entrance and exit slits with 10 µm to 3 mm width
  • Motorized intermediate slits with 10 µm to 12 mm width
  • Bypass to switch the entrance beam between first, second and third stage
  • Stokes / Anti-Stokes Accessory
  • Optional Silver-, Gold- or MgF2-coated mirrors
  • Stepping motor scanning system with microprocessor control provides superior precision and repeatability of wavelength positioning
  • Optional internal shutter for experiments requiring background removal or signal attenuation

Microscope

  • Upright Olympus microscopes BX53 and BX51WI, inverted Olympus microscope IX73/83, dual or custom-built microscopes
  • Objectives for UV, VIS, NIR and IR with short and long working distance
  • Sample observation with binocular tubes and imaging camera
  • Simultanious sample and laser observation
  • DIC, Dark- and Bright-Field illumination
  • Equipped with optics sets that are matched for desired wavelength range
  • Manual and motorized XYZ-tables for sample movement

Detector

  • Peltier- and liquid-nitrogen-cooled detectors
  • CCD, InGaAs array and single-point detectors
  • EMCCDs for fastest Raman mapping
  • Back-illuminated eXcelon/anti-fringing CCD detectors with lowest etaloning
  • Photon Counting PMT systems

Laser & Filters

  • Wide selection of CW-Laser systems from DUV to NIR (194 - 1064 nm)
  • Laser clean-up filters and Raman-Edge/Notch filters from UV to NIR
  • Ultra-narrow-band notch filters for 405, 488, 514, 532, 633, 785 and 1064 nm
  • Laser intensity regulation via ND-filter-changer (up to ND8)
  • Shutters for sample, detector protection and laser safety class I

Multiple configurations

A variety of configuration enables a wide field of applications. Up to four input ports and four output ports provide a wide range of different system setups.

The additive or subtractive arrangement of the double monochromator stage can be selected by software. Switching between additive and subtractive mode is done inside the first two Stages without any need of an additional optic.
So the Double Monochromator Stage can be used together with the last stage as a Triple system for Raman Spectroscopy.

Setup for Micro and Macro Raman Spectroscopy in Triple additive and subtractive Mode

It can also be used as an excitation stage for Fluorescence and Photoluminescence and the emission can be detected by the last stage of the system.

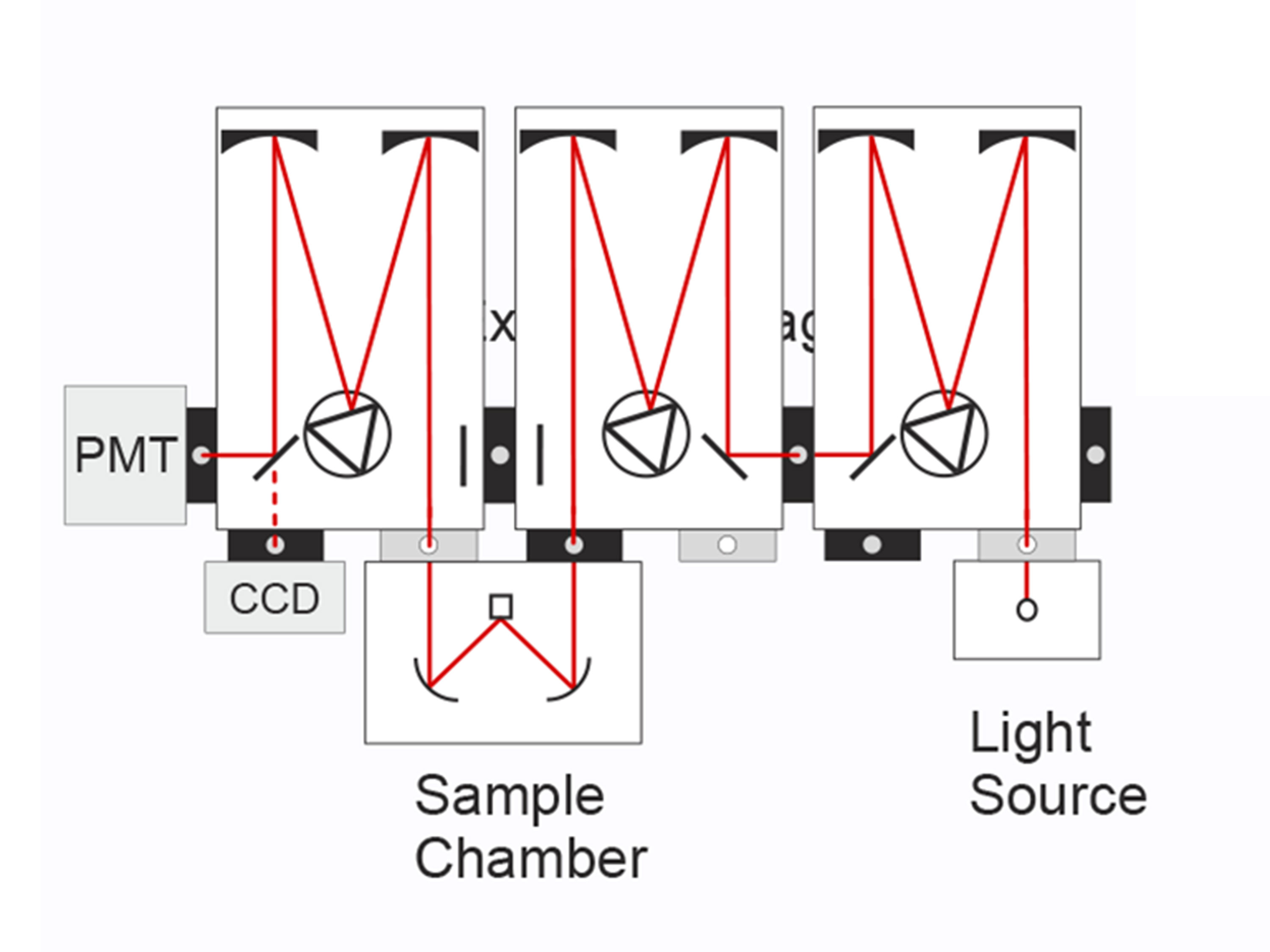

Setup for Photoluminescence & Fluorescence

Setup to run three experiments simultaneously

Also, a bypass system is available to switch the entrance beam between the entrance slit of the first and third stage of the TriVista

Accessories

  • Optic sets for automated polarization measurements (UV to IR)
  • Optic sets for Line-Focus measurements
  • Macro-Raman Chamber and Macro-Raman Accessory for microscopes
  • Motorized XYZ-stages with stepsize < 50 nm
  • Piezo XYZ-stages with stepsize < 10 nm
  • Heating/Cooling stages
    • Heating stage, temperature limit at 1500 °C
    • Combined Heating/Cooling stages, working range: -196°C - 600°C
    • Helium cryostats (with and without cryogen) with temperature limit at a few Kelvin
  • AFM from A.P.E. Instruments for TERS and AFM-Raman mapping
  • Coupling to beam-lines possible via free-beam or fiber-coupling



Macro Raman Chamber

  • Useful for solids, liquids and gases
  • f/2 entrance optics
  • Laser focussing lens
  • Holder for Interference filter (without filters)
  • Variable Incidence for Solids
  • Horizontal beam for Liquids and Gases
  • 180° Illumination
  • Multipass mirrors
  • Retro collecting mirror
  • X-Y-Z sample movement (optionally motorized)
